Overview

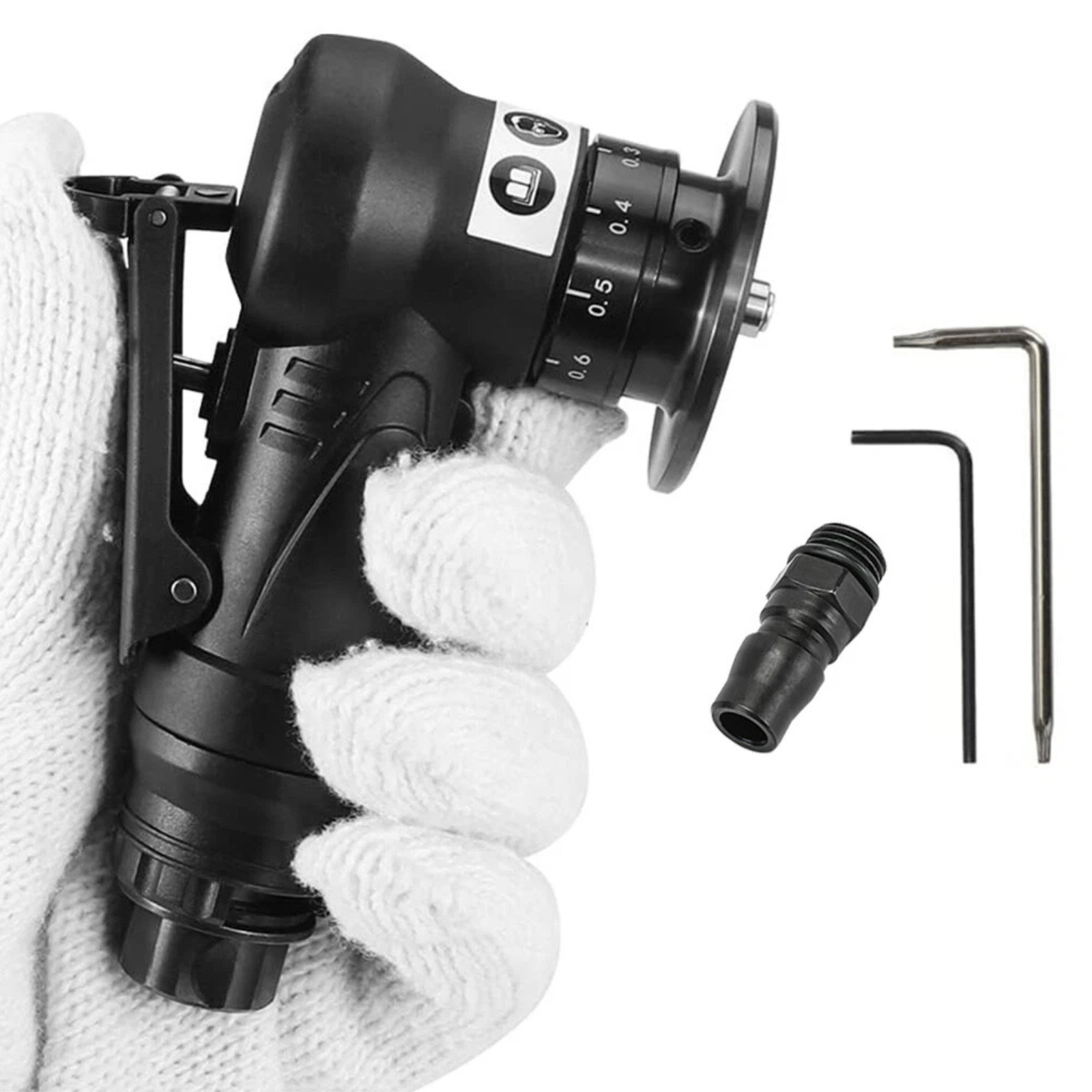

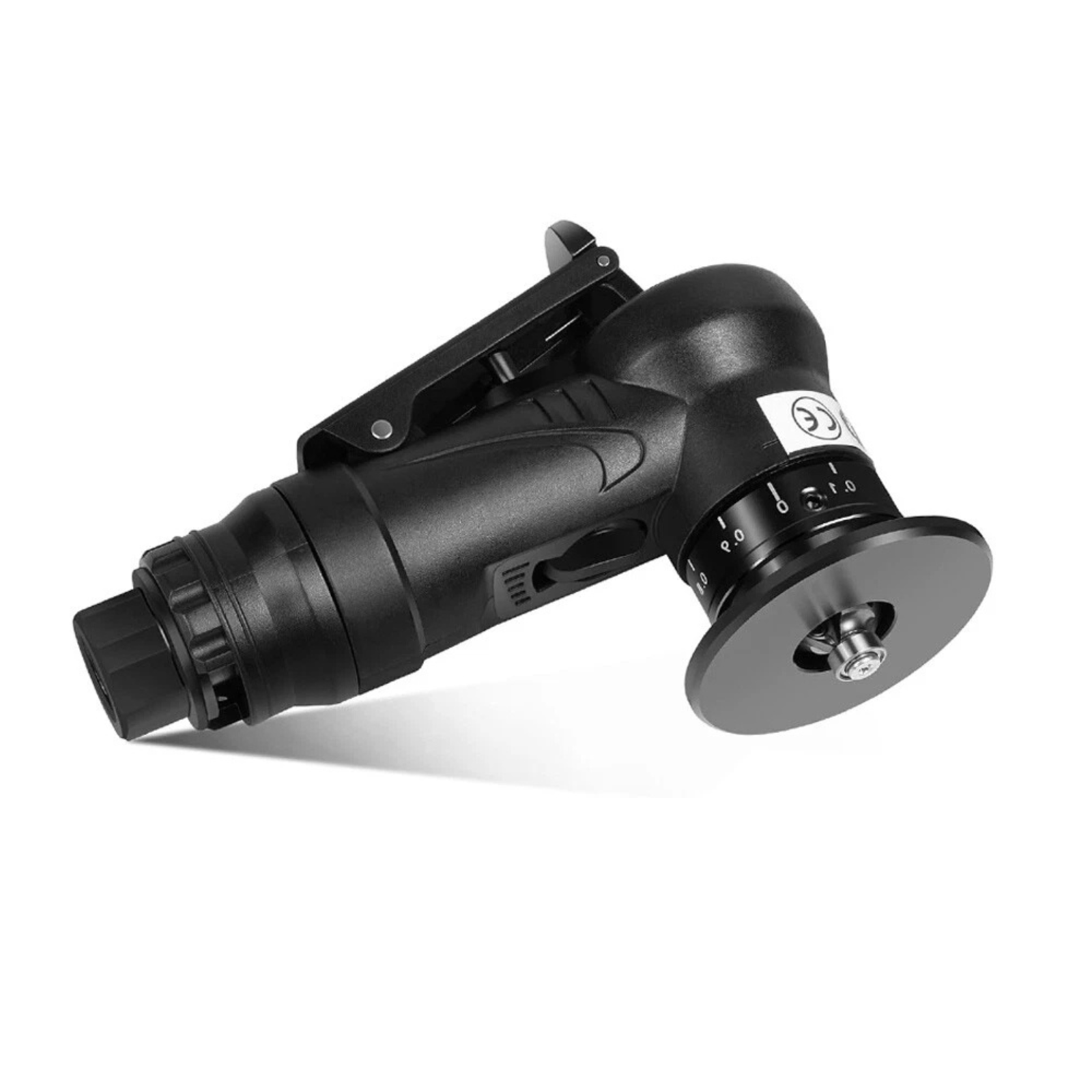

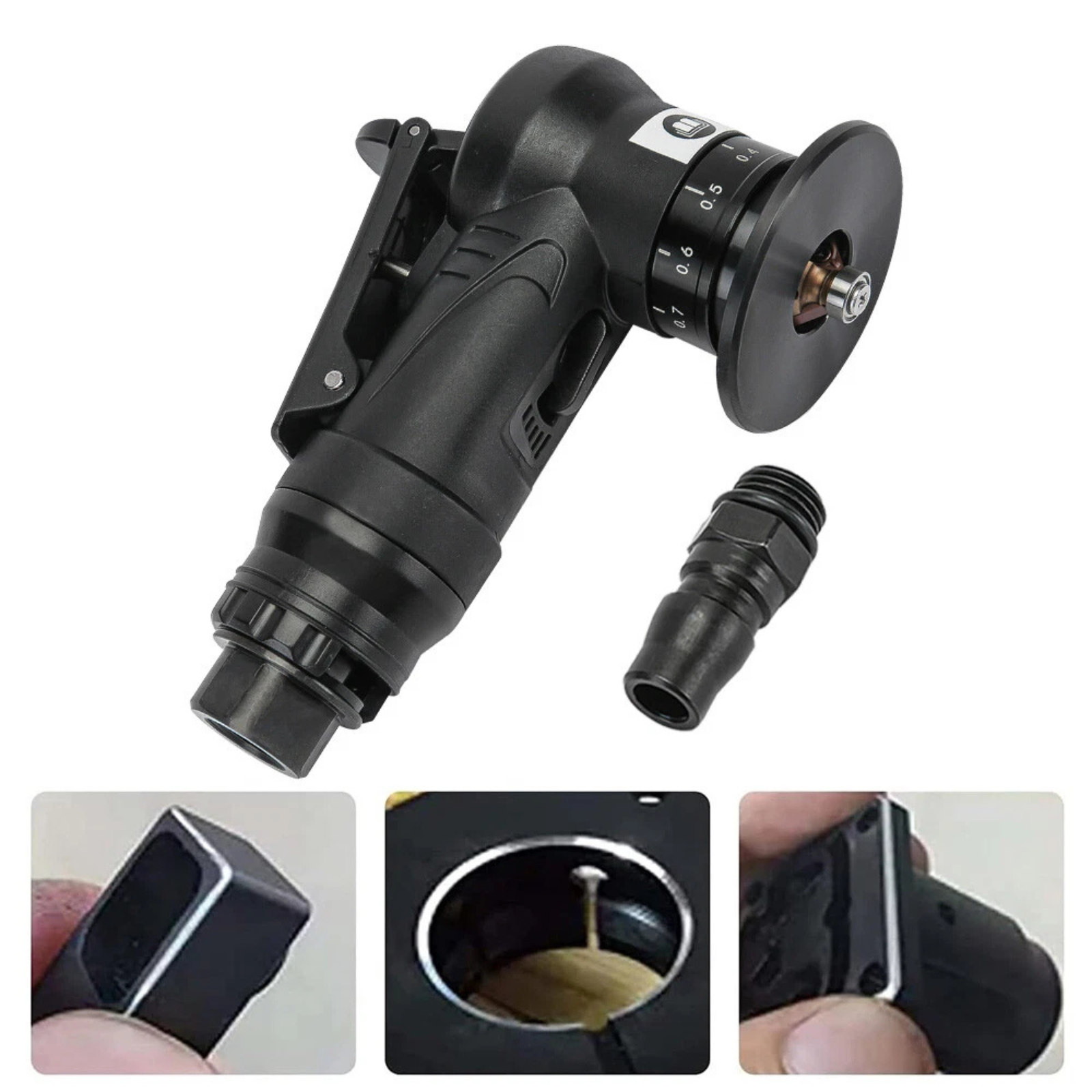

HANDHELD PNEUMATIC BEVELING MACHINE: Achieve precise edge finishing with this high-performance pneumatic chamfering tool designed for metal edge beveling and trimming, featuring dual tungsten steel cutting heads and a compact one-handed operation design for efficient industrial use.

Key Features

• DUAL BLADE CUTTING SYSTEM: Equipped with sharp tungsten steel double cutter heads for powerful and efficient cutting performance.


• ADJUSTABLE CHAMFER DEPTH: Allows fine-tuning from 0.1–0.9mm for precise edge finishing control.


• HIGH EFFICIENCY DESIGN: Suitable for narrow and complex spaces including straight edges, curves, holes, and irregular shapes.


• STABLE & SAFE OPERATION: 360° rotating exhaust system helps reduce heat and maintain stable performance during extended use.

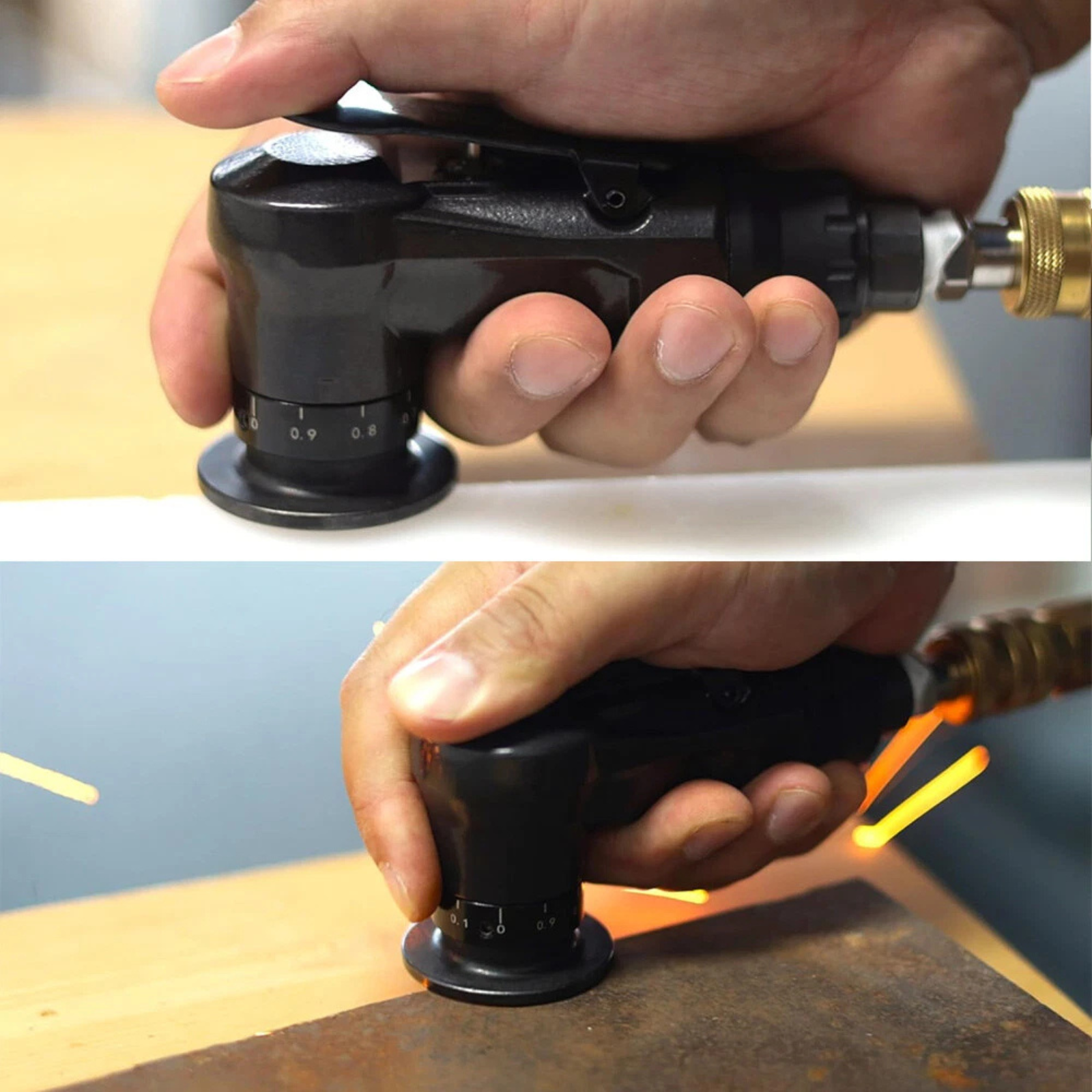

• COMPACT & EASY TO USE: Lightweight mini body design allows comfortable one-handed operation for improved productivity.

✔ Brand New & High Quality

✔ Shop Smart for the Latest Range

✔ Sent via Australia Post from our Sydney Warehouse




What You Will Get:

1x Handheld Pneumatic Beveling Machine

2x Blades

2x Bearings

2x European Standard Connection Ports

2x Black Small Screws

1x Silver Small Screw

2x Sealing Rings

3x Wrenches

3x Headless Screws

1x Small Nut

1x Instruction Manual

Technical Specifications:

• Material: Metal
• Chamfer Angle: 45° Bevel
• Chamfer Capacity: 0–1.5mm
• Adjustable Depth: 0.1–0.9mm
• Working Pressure: 0.4–0.6MPA
• Max Speed: 30000RPM
• Air Consumption: 0.4 m³/min
• Chamfer Aperture: >8mm
• Material Thickness Requirement: >3mm
• Design Type: Handheld pneumatic chamfering tool
• Usage: Metal edge beveling, trimming, industrial finishing
