Overview

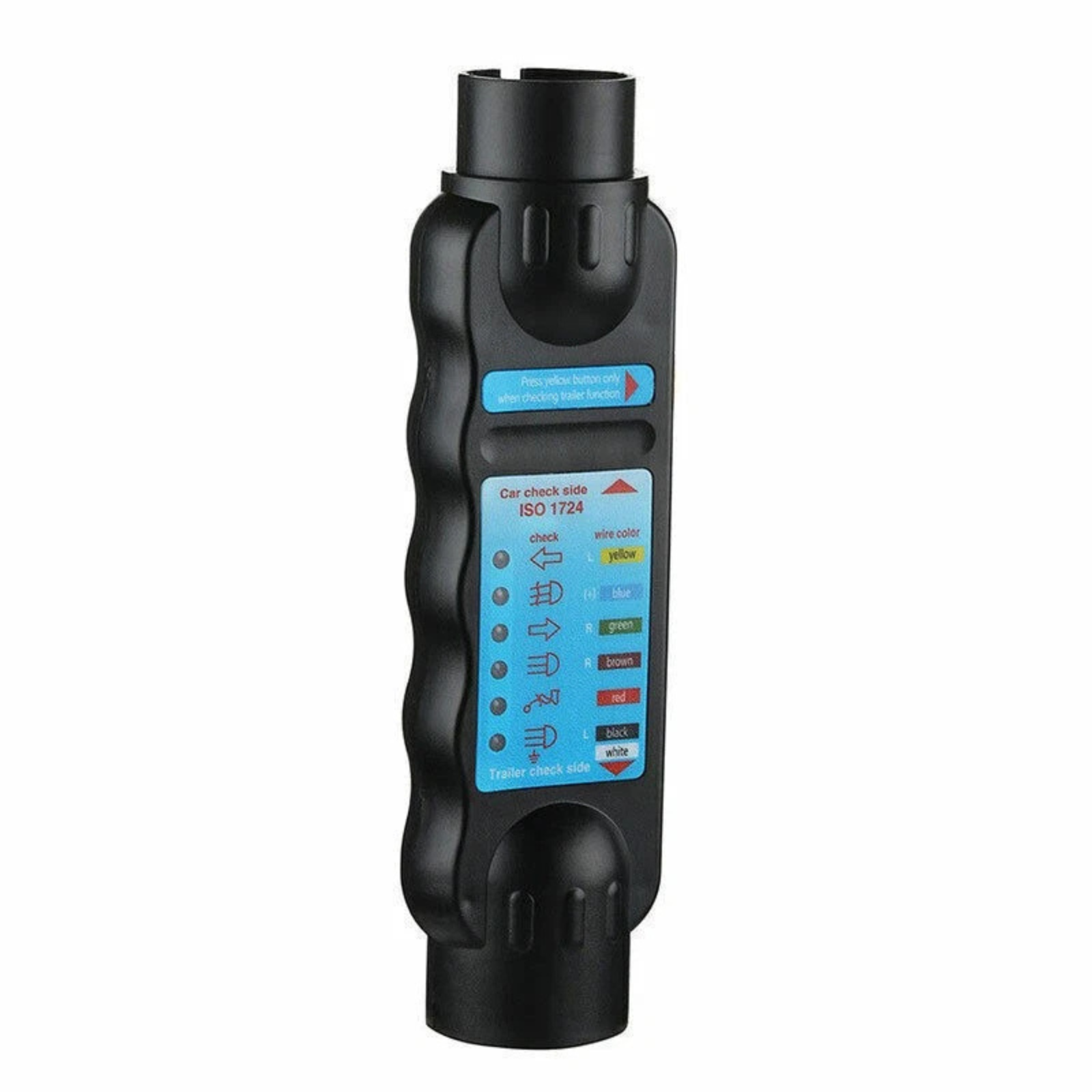

7 PIN WIRING CIRCUIT TESTER: A handheld LED socket tester for trailers, caravans, and vehicles with 7-pin wiring, providing quick and accurate wiring diagnostics to ensure your lights and connections are functioning properly.

Key Features

• 6 LED INDICATOR SYSTEM: All LEDs light up when wiring is correct, making testing fast and simple.


• DURABLE HANDHELD DESIGN: Portable, compact, and made from sturdy black plastic for long-lasting use.


• VOLTAGE SUPPORT: Designed for 12V systems, suitable for trailers, caravans, and vehicles.


• ROHS APPROVED: Certified safe and reliable for electrical testing applications.

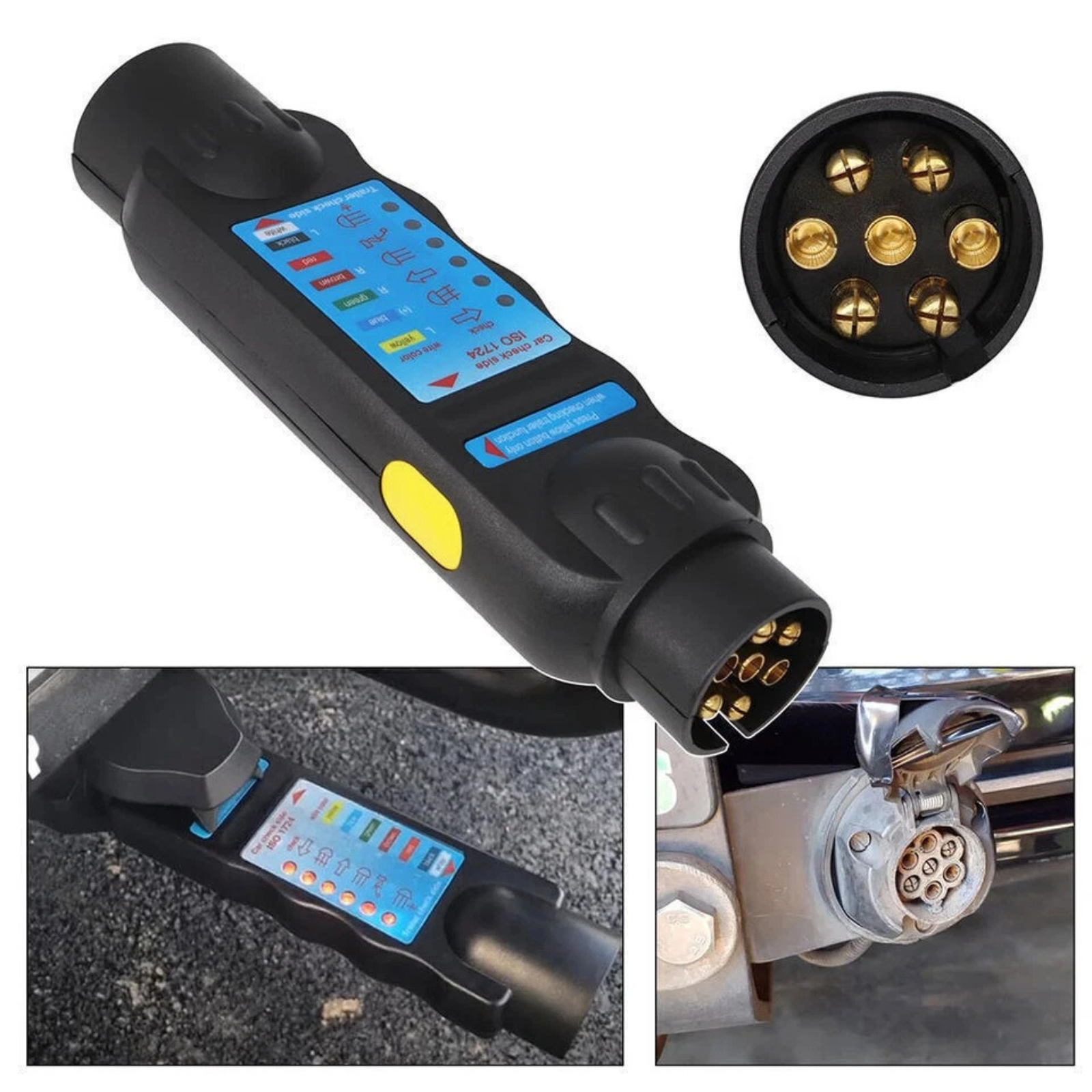

• USER-FRIENDLY OPERATION: Simply plug into a 7-pin socket or trailer plug and press the yellow button to check the wiring.


• COMPREHENSIVE PIN TESTING: Tests all functions including turn signals, brake lights, tail lights, and fog lamps for complete diagnostics.



✔ Brand New & High Quality

✔ Shop Smart for the Latest Range

✔ Sent via Australia Post from our Sydney Warehouse




What You Will Get:

1x Wiring Circuit Tester

Technical Specifications:

• Material: Durable black plastic
• Voltage: 12V
• Dimensions: Approx. 19.5 x 5 x 3.5cm / 7.9 x 2.4 x 1.6"

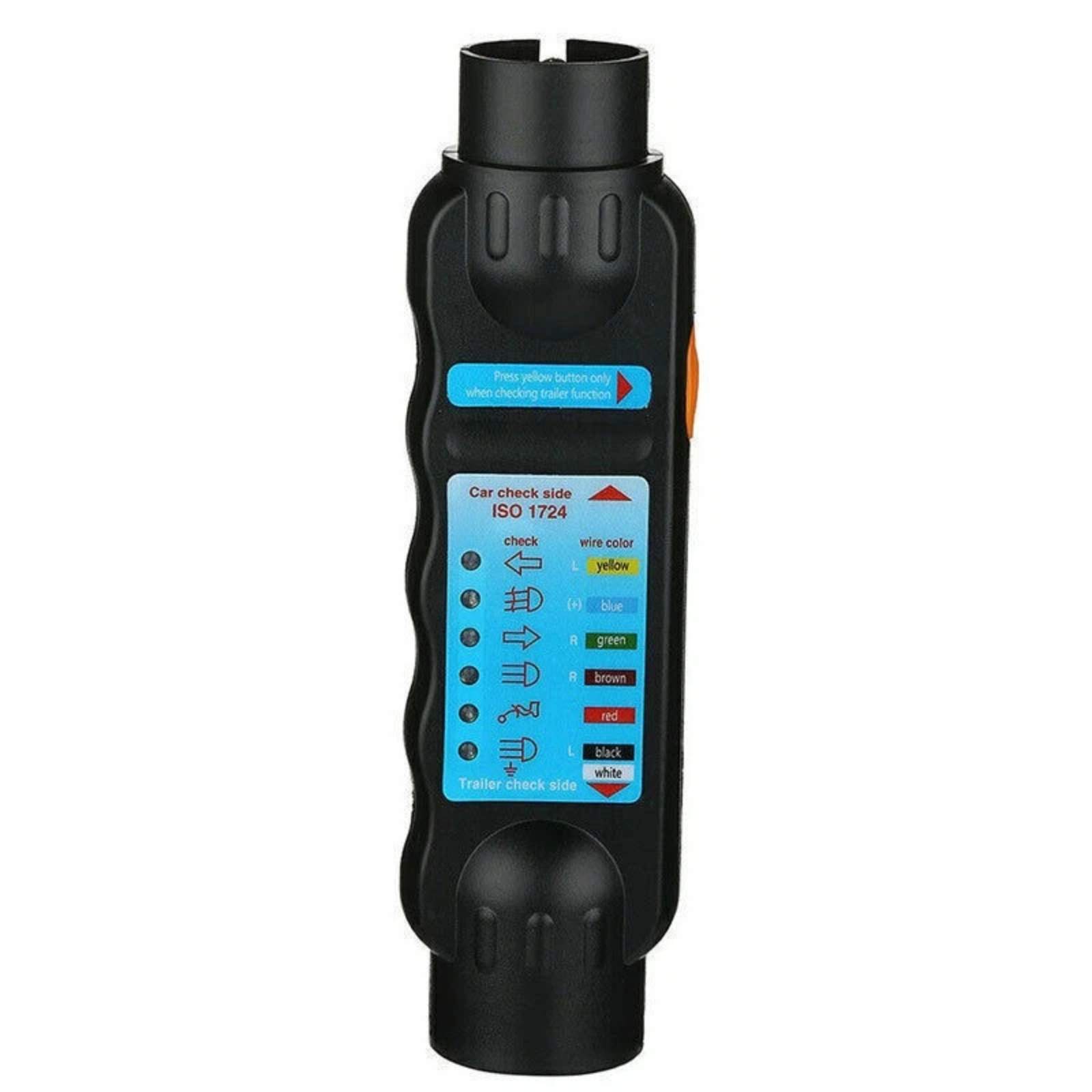

• LED System: 6 lights to indicate proper wiring

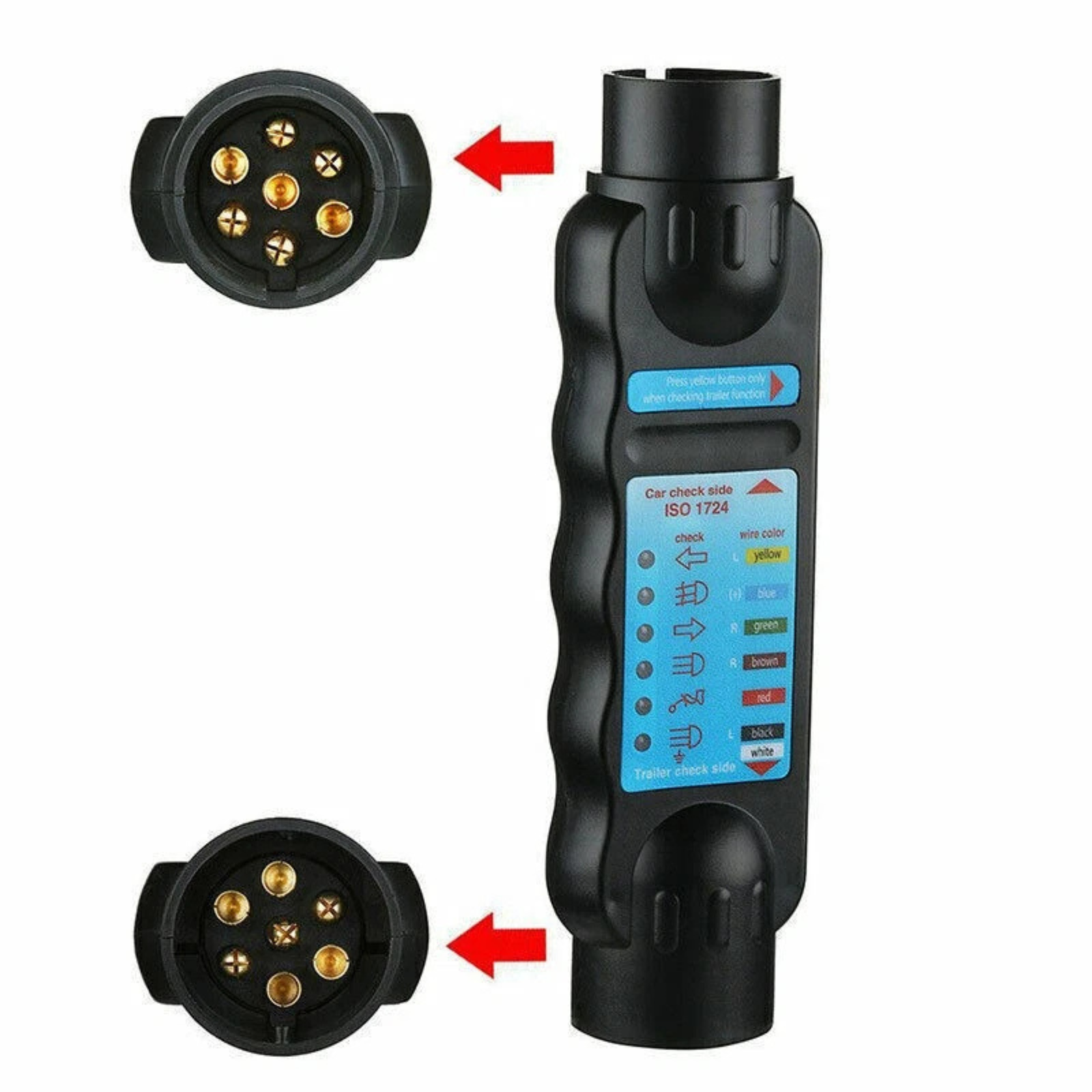

• Use: Test trailers, caravans, and vehicle 7-pin connections
• Portable: Handheld and easy to store

Note:

• Please ensure the yellow button is pressed during testing for accurate results.
• Due to lighting and screen differences, the item's color may appear slightly different from pictures.
• Check all connections and power supply before troubleshooting abnormal LED readings.
• ⚠ Not included: 9V battery required for operation.
