Overview

Discover the ultimate solar Y connector cable, featuring a guide insulator for shock prevention, a self-locking mechanism for easy handling, excellent aging resistance, UV endurance, and dust-proof design. It handles big currents, offers tool-free assembly, strong pulling force, and extra high/low-temperature resistance.

Key Features

• Guide Insulator: Prevents shock and ensures safety during use.

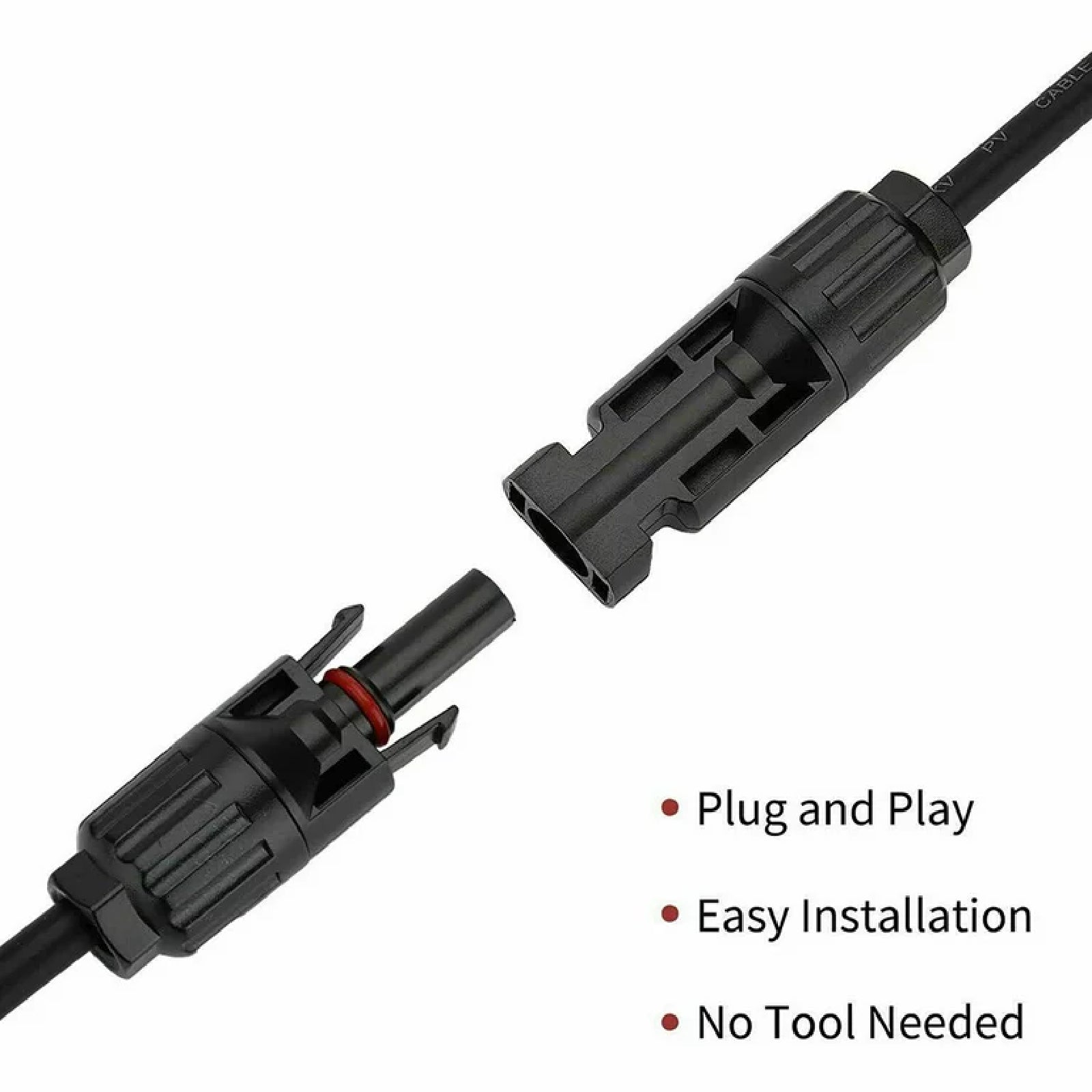

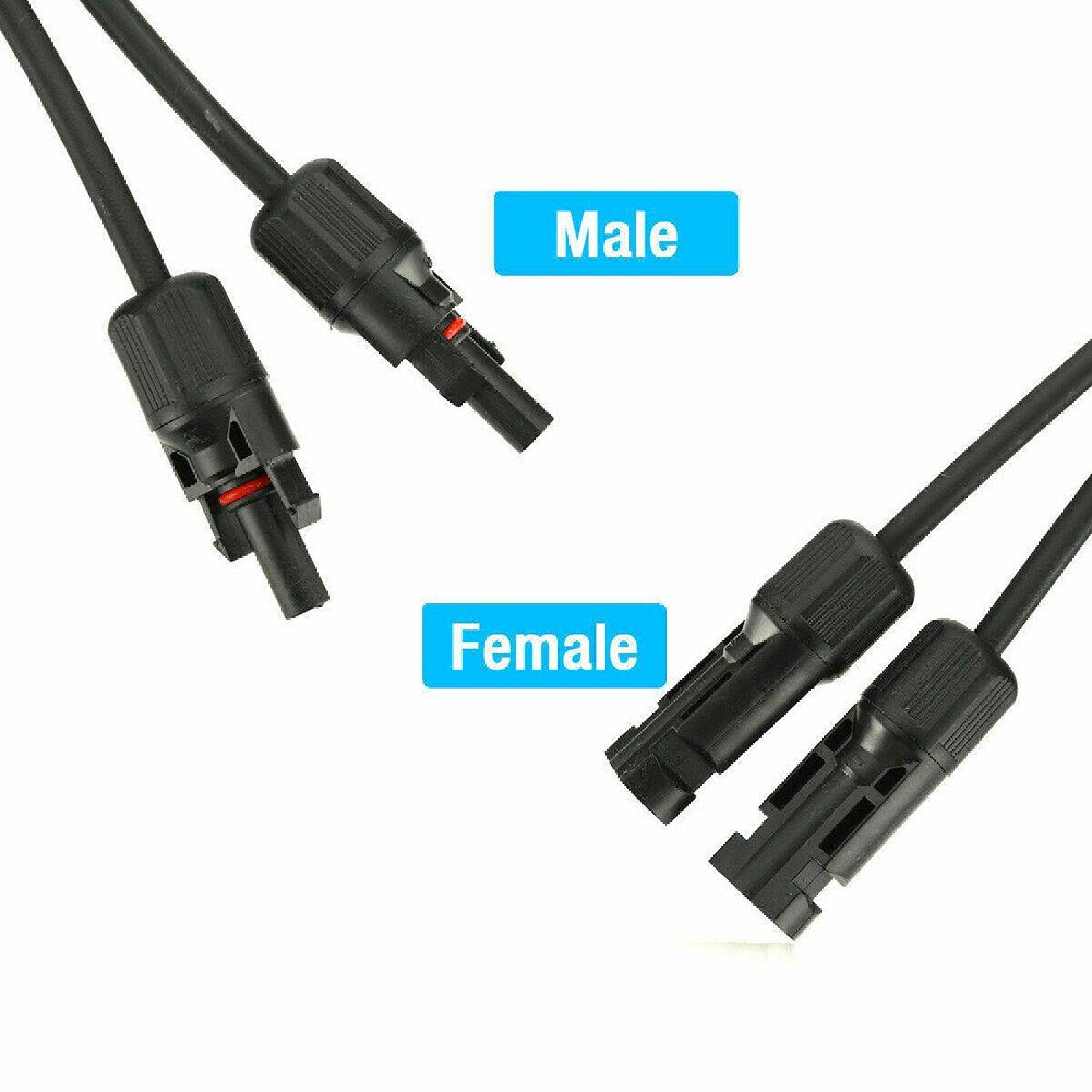

• Self-Locking Mechanism: Easy and secure handling of male and female heads.


• Excellent Aging Resistance & UV Endurance: Long-lasting and suitable for outdoor applications.


• Dust-Proof Design: Keeps the connectors clean and protected.


• High Load Capability: Handles big currents and high voltage with ease.


• Strong Pulling Force: Ensures stable and reliable connections.

✔ Brand New & High Quality

✔ Don't Get Mistaken By Fake or Replica Copies

✔ Sent via Australia Post from our Sydney Warehouse




What You Will Get:

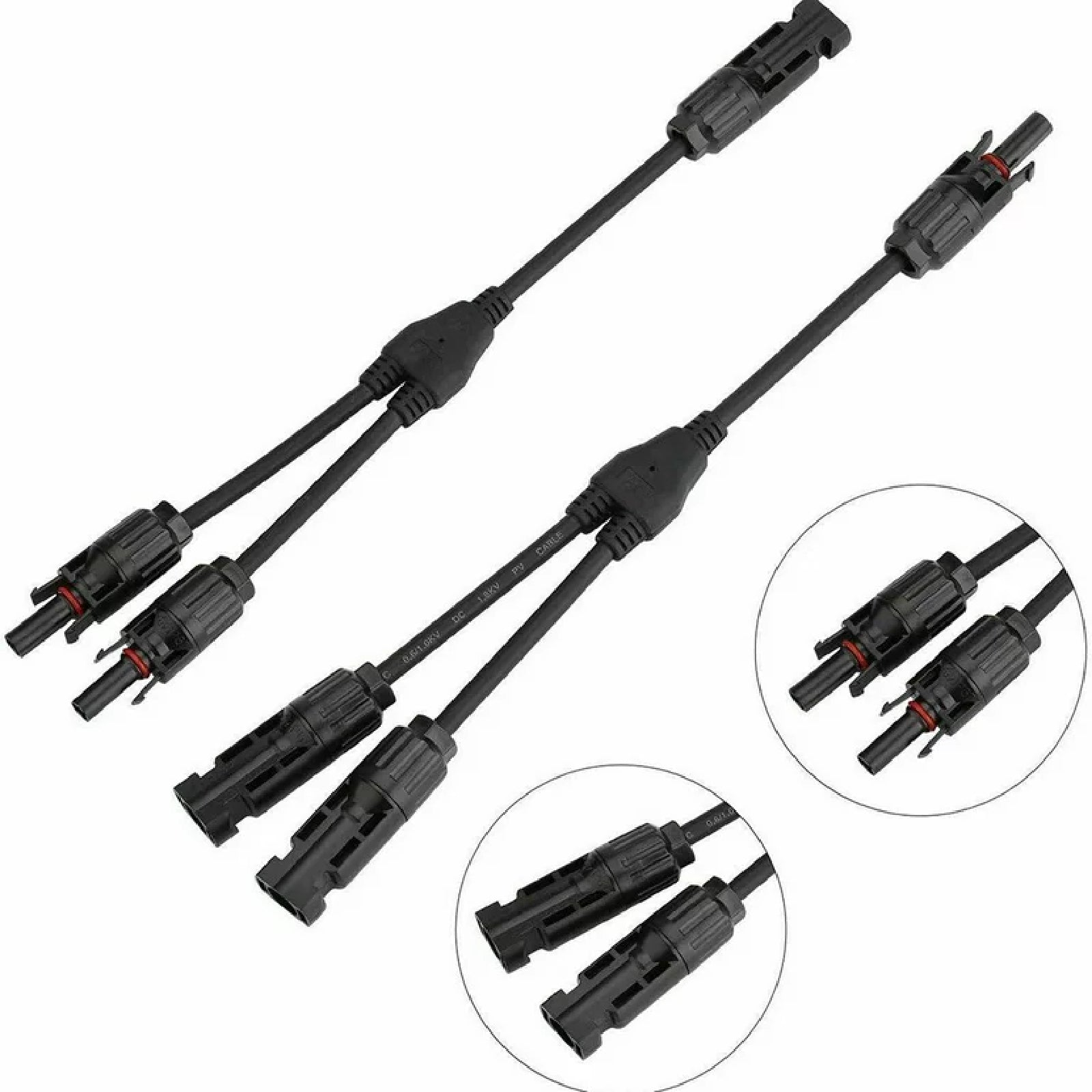

1x Pair of Y Branch Connectors

Technical Specifications:

• Brand: MEMORY TECH
• Colour: Black
• Rated Current: 30A
• Rated Voltage: 1000V DC
• Contact Resistance: <2mΩ
• Insulation Resistance: >500mΩ
• Suitable Cable Section: 2.5mm2, 4mm2, 6mm2
• Cable Outer Diameter: Φ5mm ～Φ 7mm
• Connector Insulation Material: PPO

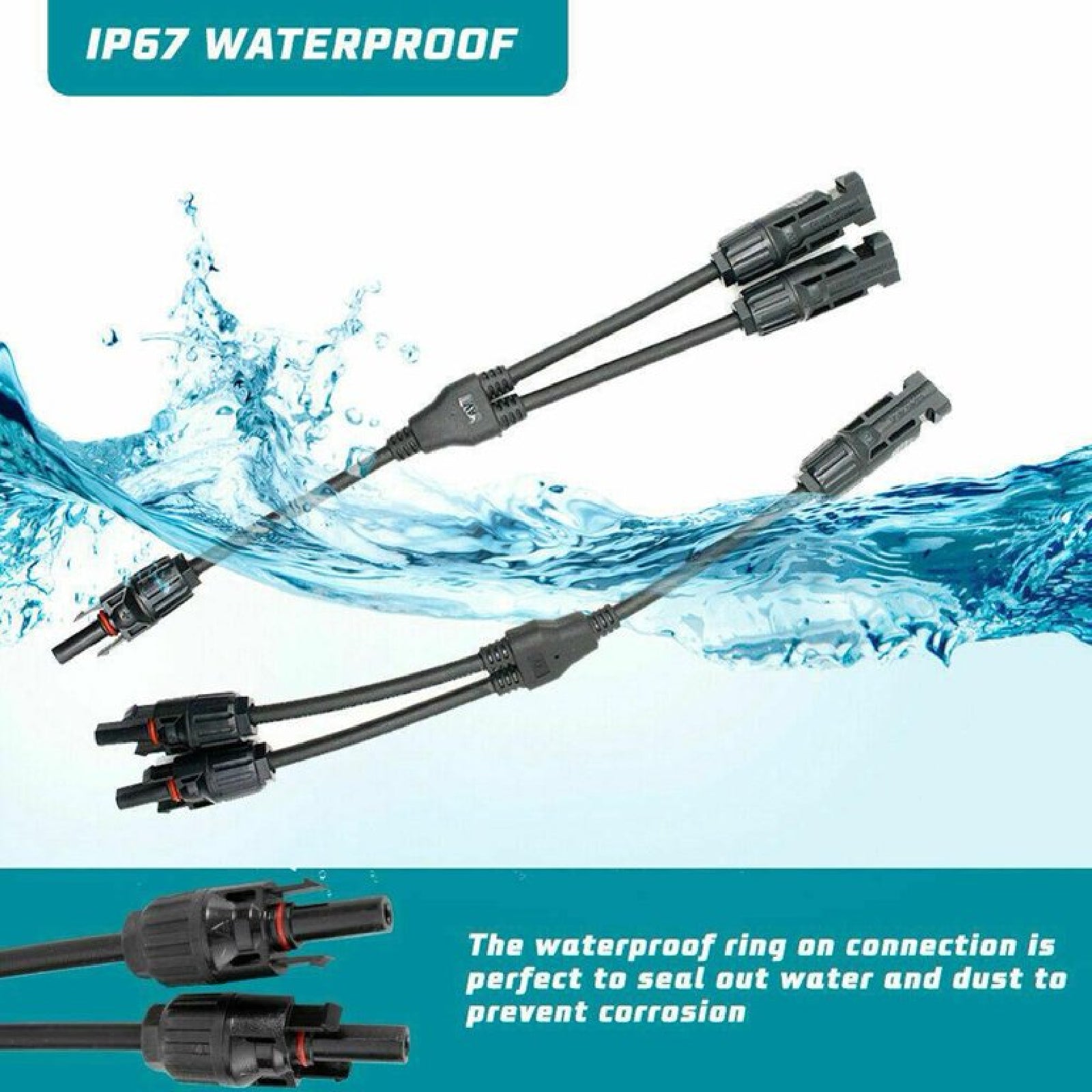

• Degree of Protection: IP67
• Safety: TUV Certified cable + TUV Certified Plug
• Operating Temperature Range: -40 ~ +105 ℃
• Cable Length: 27.5cm

Note:

• Please note that the item's colour may appear slightly different from the pictures due to variations in lighting and screen settings.
• Additionally, please allow for slight differences in dimensions due to manual measurements.


• See our store for more products compatible with your device.
• ⚠ Please check with your devices manual for specific requirement/compatability, if required.
